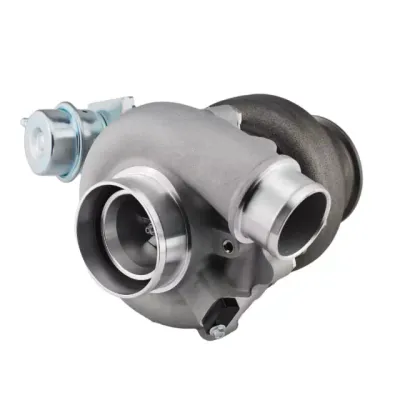

Hurricane 4849-550 A/R 0.72 Turbo WG

Hurricane 4849-550 A/R 0.72 WG ball-bearing top-of-the-line Turbocharger is perfect for Street use, Track racing, Drifting and Drag racing up to 550hp with a combination of fast spool and high peak power.

Hurricane 4849-550 A/R 0.72 Turbo WG suits 1,4 to 3,0-liter engines and produces 300-500hp on Gasoline, -600hp on Ethanol or -350hp on Diesel. Smaller engines (1,4-2,2L) will get fast spool times with the 49mm turbine, while bigger engines (2,2-3,0L) will get even faster spool times. The A/R 0,72 turbine housing keeps the spool fast and allows high peak power.

Compressor
A/R 0.70
48.37/62.2mm
Speed sensor outlet.
Clamp type: 6-Bolt clamp kit (included)
Anti-surge: Yes
Speed sensor port: Yes
Vacuum port: 1/8 -27 NPT
Inlet hose diameter: 3" / 76mm
Outlet hose diameter: 2" / 51mm

CHRA
Bearing: Dual ceramic ball bearings
Oil inlet: Special thread for ball bearing turbochargers to not get mixed with journal bearing oil inlets.
Adapter with 1mm restrictor hole.
Oil outlet: 38mm CC
Bolt thread: M8x1,25mm
Return port ID: 13mm
Cone seal as standard.
Washer seal surface available for optional adapters.
Water ports: M14x1,5
4x water ports total
2x on each side of the chra
2 plugs included
Compressor side clamp type: 6-Bolt clamp style
Turbine side clamp type: 95mm V-band

Turbine
53.85/49.36mm
Turbine Wheel fit: 54/49mm
A/R: 0,72
Inlet: 76mm V-band (Singel entry)
Outlet: 90mm V-band
CHRA connection: 95mm V-band
Wastegate: Yes (Included)
Material: SiMo Controlled Cast iron
Temperature: -750 degrees (1382F) MAX: 800°C (1472°F)
Rotation: Standard
